Electrical conduits

UL 6 - Galvanized Rigid Metal Conduits

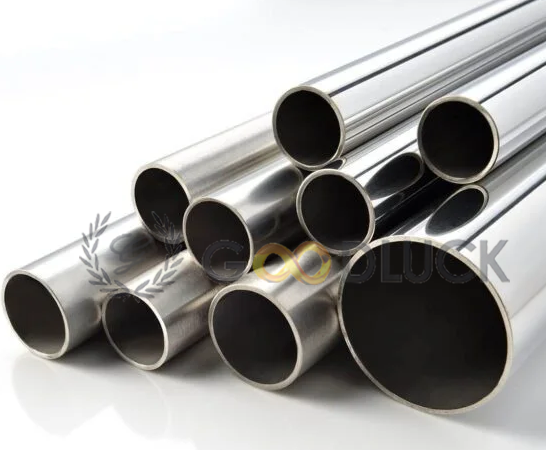

Goodluck EMT is a steel raceway of circular hollow sections which is non-threaded i.e. plain ends and is produced by high quality mild steel hot rolled coils. The exterior and interior of the EMT is protected by superior quality zinc coating done by in-line hot dipped galvanizing process. Additionally the exterior surface of EMT is coated by clear anti-corrosion coating or a zinc chromate coating for higher protection against corrosion giving the EMT long life and good smooth finish. The internal surface of the EMT is further coated with an organic zinc lubricants or higher grade organic epoxy resin by a state of art patented on – line automatic machine. This coating gives EMT a smooth internal surface which makes wire pushing and pulling easy and also protects against the corrosion.

...
Trade Size Metric Outside Diameter* Nominal Wall Thickness** Approx Weight/100 ft (30.5m) Inner Budle Qty Master Budle Qty
In Mm
In Mm
lb Kg
Pcs Pcs
1/2" 16
0.706 17.93
0.042 1.07
30 13.6
10.0 700
3/4” 21
0.922 23.42
0.049 1.24
46 20.9
10.0 500
1 27
1.163 29.54
0.057 1.45
67 30.4
10.0 300
1 1/4” 35
1.51 38.35
0.065 1.65
101 45.8
5.0 200
1 1/2” 41
1.74 44.2
0.065 1.65
116 52.6
5.0 150
2" 53
2.197 55.8
0.065 1.65
148 67.1
120
2 1/2” 63
2.875 73.03
0.072 1.83
216 1.83
61
3 78
3.5 88.9
0.072 1.83
263 119.3
37
4 103
4.5 114.3
0.083 2.11
393 178.3
30
Applicable Tolerances -

Length: 10 Feet (3.05 Meters) +/- 0.25 inch (6.35 mm) Outside Diameter:

TRADE SIZE ½” TO 2” (16 to 53) : ± 0.005” (±0.13 mm)

TRADE SIZE 2 ½” (63) : ± 0.010” (0.25 mm)

TRADE SIZE 3” (78) : ± 0.050” (0.38 mm)

TRADE SIZE ½” TO 2” (16 to 53) : ± 0.005” (±0.13 mm)

TRADE SIZE 3½” TO 4” (91 to 103 ): ± 0.020” (±0.51 mm)

Features of Goodluck Rigid Conduits –
  • 1. Higher Corrosion resistance with superior and uniform galvanizing quality.
  • 2. Accurate dimensions and uniform wall thickness.
  • 3. High quality internal coating with high grade organic epoxy resins/zinc
  • 4. Clean, smooth and defect-free interior surface.
  • 5. Easy and fast installation.
  • 6. Easy wire pushing and pulling.
  • 7. Easy & good fabrication properties like smooth cutting, bending & welding.
  • 8. Uniform and consistent quality.
  • 9. Meets the Underwriters Laboratories specifications UL797.
  • 10. Tested and certified for Safety.
