Intermediate Metal Conduit UL1242

UL 1242 - Electrical Intermediate Metal Conduit

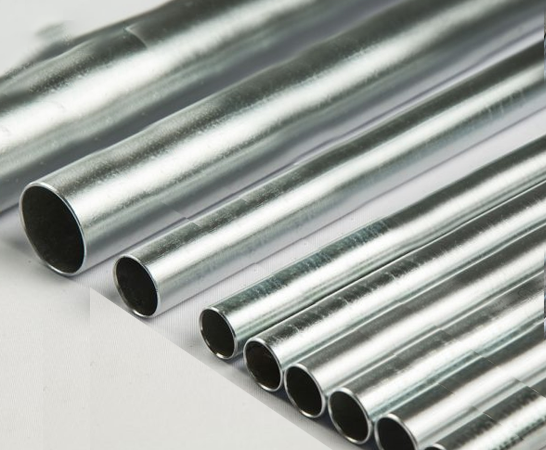

Goodluck IMC CONDUITS are produced of high quality steel using an electric resistance welding process and hot dipped galvanized both inside and outside. Goodluck Intermediate metal cond uit (IMC) are approximately one third lighter than rigid metal conduit (RMC) so it keeps our customer's costs down and increase productivity. IMC can be interchangeably used for rigid conduits and have same threads and use same couplings and fittings. Goodluck IMC conduits have prestigious UL 1242 certifications for IMC.

...
Trade Size Metric Designator Outside Diameter* Nominal Wall Thickness** Approx Weight/100 ft (30.5m) Inner Budle Qty Master Budle Qty
In Mm
In Mm
lb Kg
Pcs Pcs
1/2" 16
0.815 20.7
1.97 62
28.1 10
350 Yellow
3/4" 21
1.029 26.13
2.10 84
38.1 5
250 Green
1 27
1.29 32.76
2.35 119
54.00 5
170 Orange
1 1/4” 35
1.638 41.6
2.41 158
71.7
135 Green
1 1/2” 41
1.883 47.82
2.54 194
88
110 Yellow
2" 53
2.36 59.94
2.67 256
116.1
80 Orange
2 1/2” 63
2.857 72.56
3.81 441
200
37 Yellow
3 78
3.476 88.29
3.81 543
246.3
30 Orange
3 1/2" 91
3.971 100.86
3.81 629
285.3
24 Yellow
4" 103
4.466 113.43
3.81 700
317.5
24 Orange
Applicable Tolerances -

*OUTSIDE DIAMETER TOLERANCES:

TRADE SIZES 1/2" TO 1" : +/- .005" (0.13MM)

TRADE SIZES 1-1/4" TO 2" : +/- .0075" (0.19MM)

TRADE SIZES 2-1/2" TO 4" : +/- 0.10" (0.25MM)

**WALL THICKNESS TOLERANCES:

TRADE SIZES 1/2"TO 1" : +/- 0.19 MM

TRADE SIZES 1 1/4"TO 4" : +/- 0.25 MM

LENGTH TOLERANCE = 10 FT. (3.05M)

WITH A TOLERANCE OF +/- .25 IN. (6.35MM)

We can also produce IMC conduits in 20 feet (6 Meters) length. 20 Feet conduit provided quick and easy installation and also fewer fittings.

Features of Goodluck IMC Conduits –
  • 1. Cost effective as weighs less than Rigid
  • 2. Quick and easy installations.
  • 3. Meets the Underwriters Laboratories specifications Ul1242
  • 4. Tested and certified for Safety.
